Machined Trout



A trout sculpture machined on a Haas 3-axis Mini-mill. This was for project CANDY for IPD-501. The sculpture is intended as “desk candy”. The trout was modeled using SolidWorks 2014 surface modeling and rendered using Keyshot. The CAM was done with SolidCAM 2013. This project took about 20 hours to model, 4 hours to CAM, 10 hours to machine both the wax and Aluminum, and 8 hours of sanding and polishing.

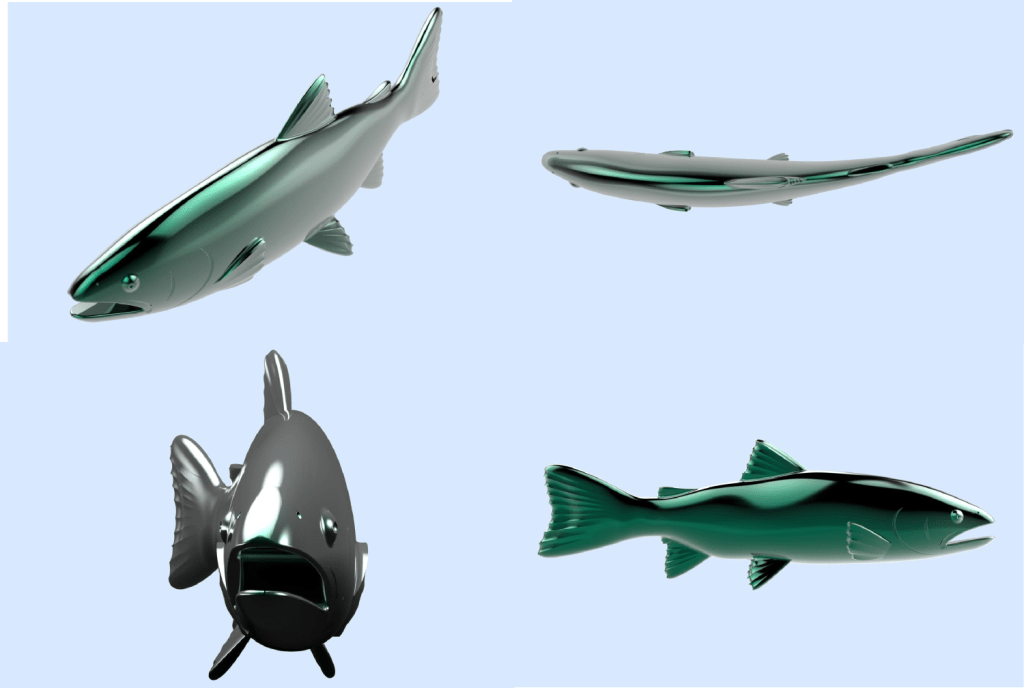

501-CANDY-RENDER-housec

Rendering in Keyshot 5

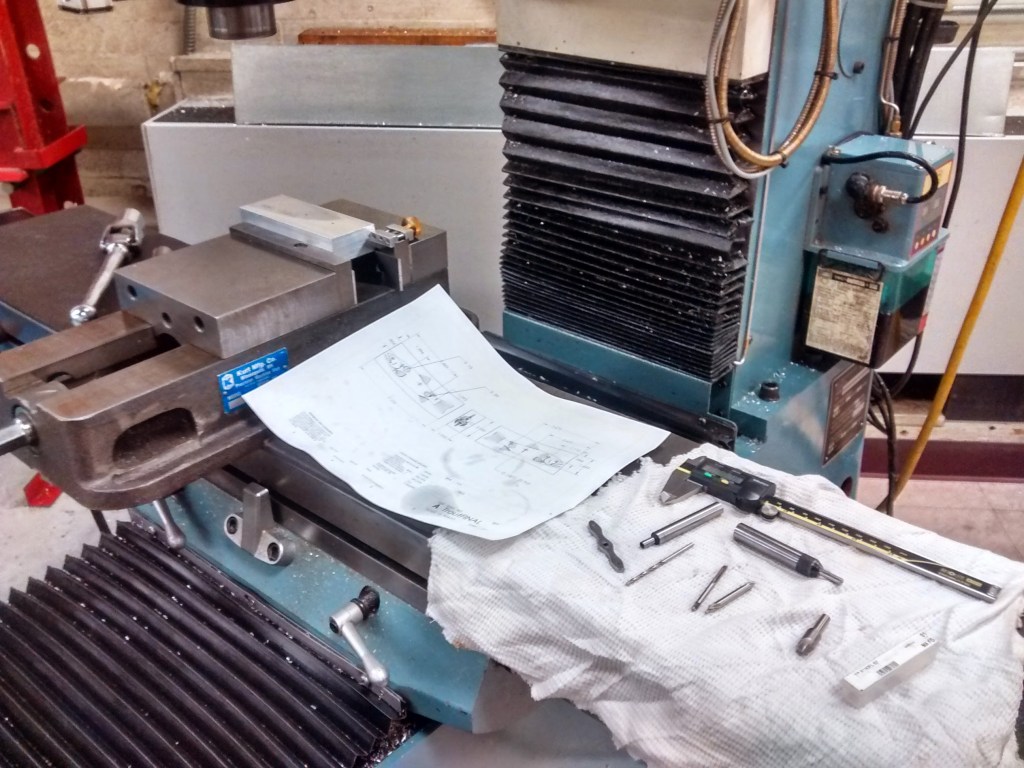

IMG_20150214_120230178_HDR

Prepping stock for fixturing in the MiniMill

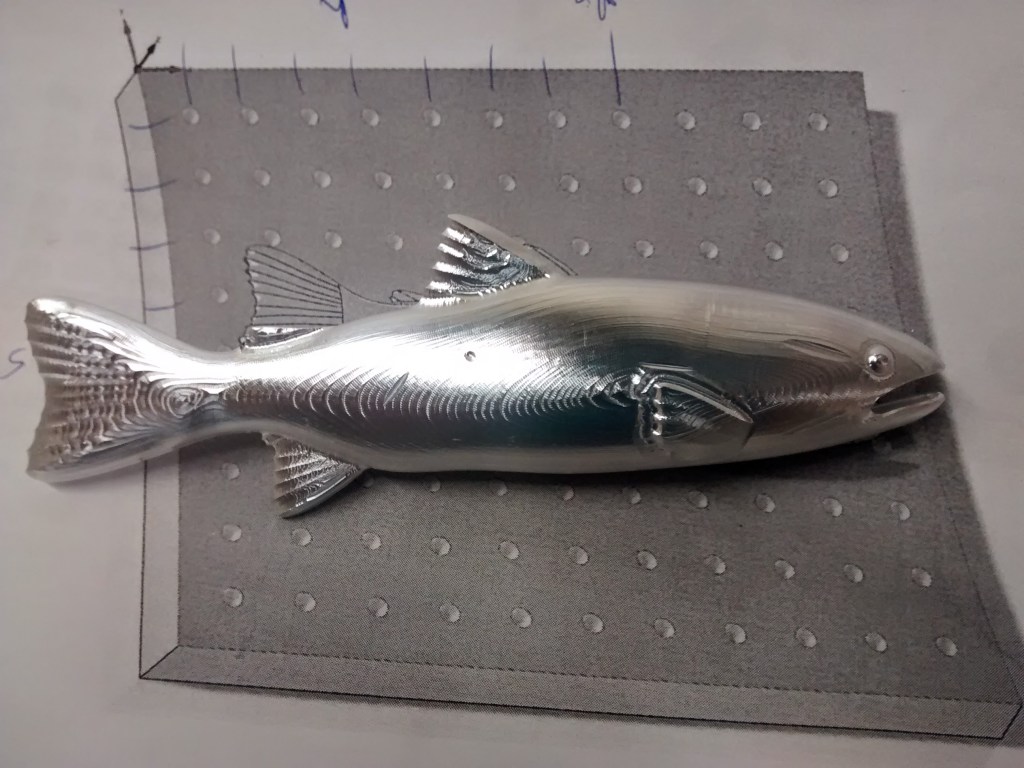

IMG_20150215_202132583

The surface finish after milling and before any sanding

CAM Simulation from SolidCAM 2014

IMG_20150301_171345213

Polished and ready to anodize
